Ultra Low Temperature Bidirectional Door Electric Bolt Lock

Shenzhen Vians Electric Lock Co.,Ltd.
Contact Now

Ultra Low Temperature Bidirectional Door Electric Bolt Lock

Brand Name : VIANS

Model Number : VI-802ST

Certification : CE,ROHS,FCC

Place of Origin : MADE IN CHINA

MOQ : 1PC

Price : negotiation

Payment Terms : T/T, ,paypal

Supply Ability : 1000pcs A week

Delivery Time : 1000pcs 5-8business days

Packaging Details : carton 40.5*30*31cm 30pcs/carton

Product Type : Electric Bolt Lock with the signal output

Lock Size : 205l*35w*40h(mm)

Strike : 90l*25w*2h(mm)

Input Voltage : DC12V

Working Current : 110mA

Door Type Applicable : Wooden/Glass/Metal/Fireproof Door

Time Delay : yes

Security Type : Locked when energized

Weight : 0.72kg

Contact Now

Ultra Low Temperature Bidirectional Door Electric Bolt Lock

Product Overview

Electric bolt lock is kind of electric control locks,it works by means of extending

or retracting the lock bolt with elecric current.The vians electric bolt lock use the microprocessor

chip to control electric circuit,so it decreases the power consumption and really has the ultralow

temperature function.Afeter 500000 times of test,we can assure our locks are more stable,more

environmentally friendly and durable.Electric bolt lock is designed mainly for glass door,wooden door

and metal door,it is suitable for bidirectional door and sliding door,becomes the best choice of access

control automation management.

Product Feature

1. Photoelectric control technology, prevent mechanical failure.

2. Ultra-low temperature design, Safer and more durable.

3. Ultra-low-power design, More durable and more environmentally friendly.

4. With time delay,0s,3s,9s

5. Built-in reverse current and prevention device (MOV).

6. Intelligent single chip configuration, three types current application.

7. High strength aluminum alloy lock body, stainless steel lock bolt.

8. Products pass the EU CE and china MA qualified certification.

Function

Stainless steel deadlatch

Revesible latch bolt for right or left-handed doors

Stainless steel faceplate

Bolt sensor stastus monitor

Autolock time delay:0,3,6,9s

Product Parameter

Product Type

205Lx35Wx40H(mm)

Strike Size

90Lx25Wx2H(mm)

Input Voltage

DC12V±10%

Start Current

950mA

Working Current

110mA

Door Type Applicable

Wooden door , Glass door ,Metal door , Fireproof door

Time Delay

YES

Signal output

YES

Security Type

Locked when energized

Warranty

1year,3year,5year

Weight

0.72KG

Advantage

A: The low current is changed immediately

B: When door frame doesn't conincide with doorleaf,door leaf against the bolt,then the electricbolt

with start the low-power function to bring low temperature.

C: The photoelectricity control technology,prevent the machanical defect.

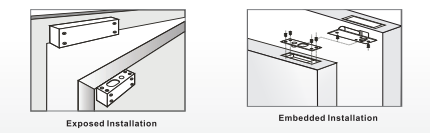

Installation Drawing

Ultra Low Temperature Bidirectional Door Electric Bolt Lock

Product Details

Ultra Low Temperature Bidirectional Door Electric Bolt Lock

Ultra Low Temperature Bidirectional Door Electric Bolt Lock

Ultra Low Temperature Bidirectional Door Electric Bolt Lock

Ultra Low Temperature Bidirectional Door Electric Bolt Lock

Exhibition

Every year,we attend so many security exhibitions,such as ISC WEST,INTERSEC,CPSE,

and so on.More and more customers have become our regular partners.We have been

cooperating for many years and have a good reputation for us.

Ultra Low Temperature Bidirectional Door Electric Bolt Lock

Ultra Low Temperature Bidirectional Door Electric Bolt Lock

FAQ

Q: What about the warranty?
A: We could offer 1year,3year,5years warranty.

Q: Which certifications you have?
A: Most of our products passed CE,ROHS,FCC,MA certifications,could meet your need

Q: Could you arrange the shipment?

A: Yes, we could help to arrange shipment and offer tracking number asap.

Q: Does this product come with retail package?

A: We have declared the packing detail on the description of each product, please check it, thank you!

Q: Are you a factory?

A: Yes,we are electric lock factory.Welcome you to take a visit.
